Automatic Electric Heating Steam Generator 48KW 54KW 72KW

Short Description:

NOBETH-BH steam generator is a mechanical device that uses electric heating to heat water into steam.It mainly consists of a water supply, automatic control, heating, safety protection system and a bladder.There is no open flame,no need for someone to take care of it.It is easy to operate and can save your time.

Brand: Nobeth

Manufacturing Level: B

Power Source: Electric

Material: Mild Steel

Power: 18-72KW

Rated Steam Production: 25-100kg/h

Rated Working Pressure: 0.7MPa

Saturated Steam Temperature: 339.8℉

Automation Grade: Automatic


Product Detail

Product Tags

Overall description

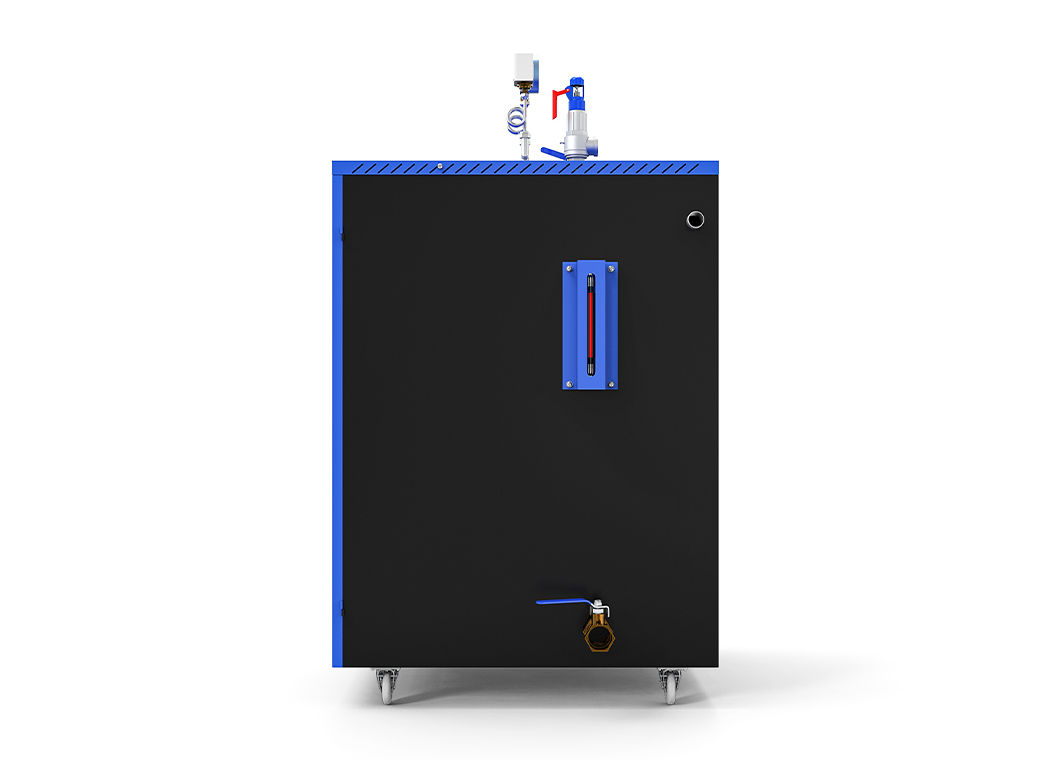

NOBETH-BH electric heating steam generator (3)

The shell of the NOBETH-BH series steam generator is mainly blue, using thickened and high-quality steel plates. It adopts a special spray paint process, which is beautiful and durable. It is small in size, can save space, and is equipped with universal wheels with brakes, which is convenient to move.

This series of steam generators can be widely used in biochemicals, food processing, clothing ironing, canteen heat preservation&steaming, packaging machinery, high-temperature cleaning, building materials, cables, concrete steaming&curing, planting, heating&sterilization, experimental research, etc. It is the first choice of a new type of fully automatic, high efficiency, energy saving and environmentally friendly steam generator that replaces traditional boilers.

Advantages

(1) Beautiful and generous appearance, universal caster with brake and it is easy to move.

(2) Full copper floating ball level controller, pure water can be used, long service life, simple maintenance.

(3) It adopts two sets of high-quality seamless stainless steel heating pipes, which can adjust the power according to needs, also the temperature and pressure can be controlled.

(4) It produces steam quickly, and the saturated steam can be reached in 5-10 minutes.

(5) Double safety guarantee with adjustable pressure controller and safety valve.

(6) It can be made into stainless steel liner as customers required.

Model

Power

Dia of Water Inlet

Dia of Sewage Outfall

Dia of Steam Outlet

Dia of  Safety Valve

NBS-FH3kw

3KW

DN15

DN15

DN15

DN15

NBS-FH6kw

6KW

DN15

DN15

DN15

DN15

NBS-FH9kw

9KW

DN15

DN15

DN15

DN15

NBS-GH3KW

3KW

DN15

DN15

DN15

DN15

NBS-GH6KW

6KW

DN15

DN15

DN15

DN15

NBS-GH9KW

9KW

DN15

DN15

DN15

DN15

NBS-GH12KW

12KW

DN15

DN15

DN15

DN15

NBS-GH18KW

18KW

DN15

DN15

DN15

DN15

NBS-GH24KW

24KW

DN15

DN15

DN15

DN15

NBS-CH24KW

24KW

DN15

DN20

DN20

DN20

NBS-CH36KW

36KW

DN15

DN20

DN20

DN20

NBS-CH48KW

48KW

DN15

DN20

DN20

DN20

NBS-BH54KW

54KW

DN15

DN20

DN20

DN20

NBS-BH60KW

60KW

DN15

DN20

DN20

DN20

Nobeth Model

Rated capacityKG/H)

Rated working pressureMpa)

Saturated steam temperature)

External dimension (MM)

NBS-FH3kw

3.8

0.7

171

700*500*950

NBS-FH6kw

8

0.7

171

700*500*950

NBS-FH9kw

12

0.7

171

700*500*950

NBS-GH3KW

3.8

0.7

171

572*435*1250

NBS-GH6KW

8

0.7

171

572*435*1250

NBS-GH9KW

12

0.7

171

572*435*1250

NBS-GH12KW

16

0.7

171

572*435*1250

NBS-GH18KW

25

0.7

171

572*435*1250

NBS-GH24KW

32

0.7

171

572*435*1250

NBS-CH24KW

32

0.7

171

930*520*1100

NBS-CH36KW

50

0.7

171

930*520*1100

NBS-CH48KW

65

0.7

171

930*520*1100

NBS-BH54KW

72

0.7

171

930*560*1175

NBS-BH60KW

83

0.7

171

930*560*1175
