Automatic Electric Steam Generator 18KW 36KW 48KW

Short Description:

NOBETH-GH series steam generator is an electric heating steam generator, which is a mechanical device that uses electric heating to heat water into steam. Compared with gas and fuel steam generators, electric heating steam generators have no open flames and no emissions, which fully conforms to the national environmental protection strategy standards.

Brand: Nobeth

Manufacturing Level: B

Power Source: Electric

Material: Mild Steel

Power: 6-48KW

Rated Steam Production: 8-65kg/h

Rated Working Pressure: 0.7MPa

Saturated Steam Temperature: 339.8℉

Automation Grade: Automatic


Product Detail

Product Tags

Product description

NOBETH-GH steam generator belongs to a series of small and medium-sized electric heating steam generator, and the power can produce from 6KW-48KW .The interior can design double-tube heating, multi-speed adjustment.Independent heating is more convenient and energy-saving. It is suitable for experimental research, high-temperature cleaning, food processing, winemaking and other industries.

It has an independent circuit control system, which makes the machine safer and prolongs the life of the machine.The water pump adopts a high-quality bass high-pressure water pump, with sufficient copper wire coil power, guaranteed quality, not easy to damage, and extremely low noise, which will not cause sound pollution and improve production efficiency.

This series of steam generator is suitable for experimental research, high-temperature cleaning, food processing, winemaking and other industries.

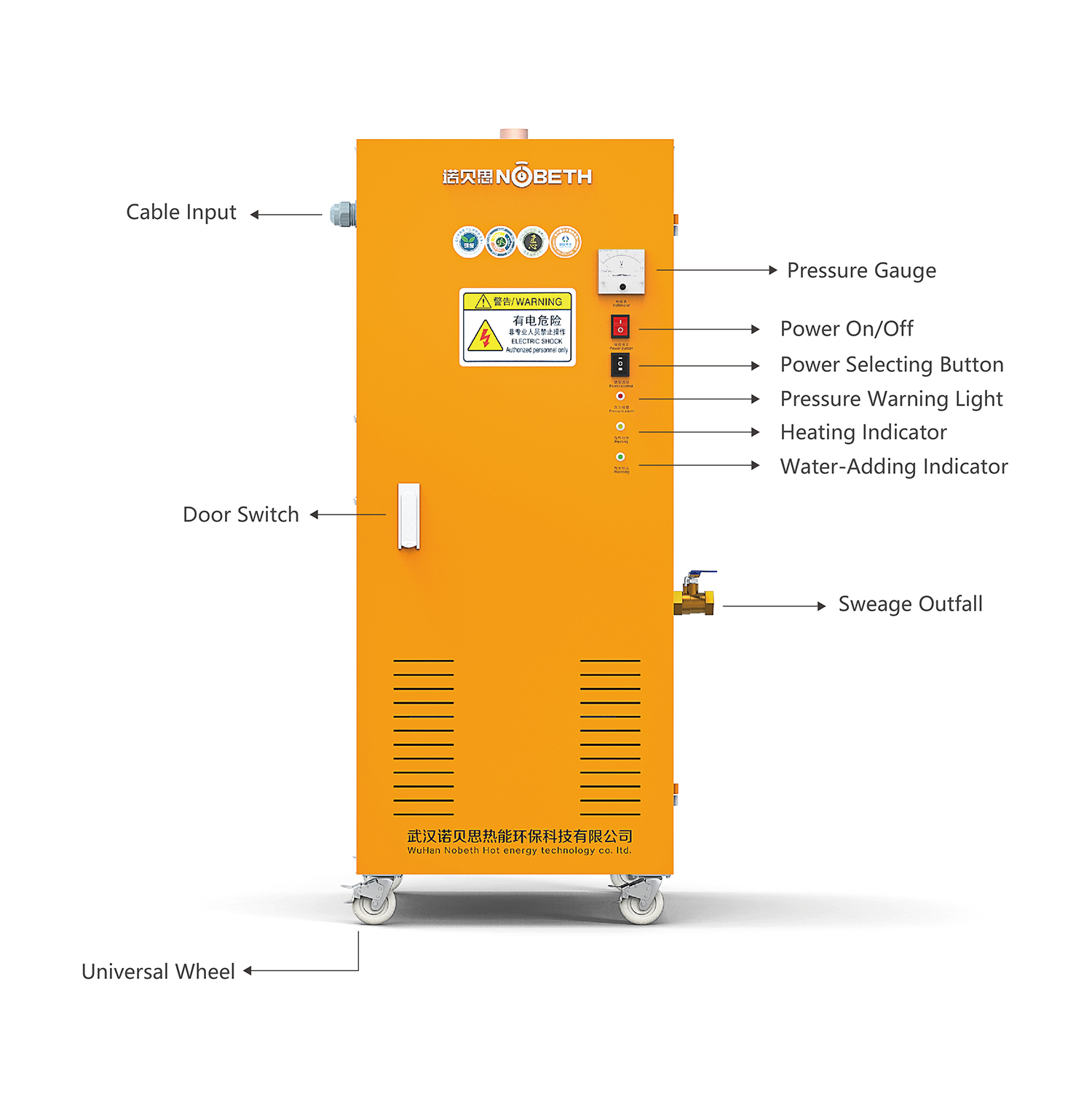

NOBETH-GH Automatic Electric Heating Steam Generator (1)
NOBETH-GH Automatic Electric Heating Steam Generator (2)
NOBETH-GH-electric-heating-steam-generator4
NOBETH-GH-electric-heating-steam-generator2

Advantages

1. One-click operation, three-stage electrode control water heating automatically.

2. Adopt high-quality high-pressure vortex pump, low noise and not easy to damage.

3. Compact and clear structure - economical and pratical price.

4. High quality universl wheels with brake - move and fix freely.

Nobeth Model

Rated capacityKG/H)

Rated working pressureMpa)

Saturated steam temperature)

External dimension (MM)

NBS-FH3kw

3.8

0.7

171

700*500*950

NBS-FH6kw

8

0.7

171

700*500*950

NBS-FH9kw

12

0.7

171

700*500*950

NBS-GH3KW

3.8

0.7

171

572*435*1250

NBS-GH6KW

8

0.7

171

572*435*1250

NBS-GH9KW

12

0.7

171

572*435*1250

NBS-GH12KW

16

0.7

171

572*435*1250

NBS-GH18KW

25

0.7

171

572*435*1250

NBS-GH24KW

32

0.7

171

572*435*1250

NBS-CH24KW

32

0.7

171

930*520*1100

NBS-CH36KW

50

0.7

171

930*520*1100

NBS-CH48KW

65

0.7

171

930*520*1100

NBS-BH54KW

72

0.7

171

930*560*1175

NBS-BH60KW

83

0.7

171

930*560*1175

Model

Power

Dia of Water Inlet

Dia of Sewage Outfall

Dia of Steam Outlet

Dia of  Safety Valve

NBS-FH3kw

3KW

DN15

DN15

DN15

DN15

NBS-FH6kw

6KW

DN15

DN15

DN15

DN15

NBS-FH9kw

9KW

DN15

DN15

DN15

DN15

NBS-GH3KW

3KW

DN15

DN15

DN15

DN15

NBS-GH6KW

6KW

DN15

DN15

DN15

DN15

NBS-GH9KW

9KW

DN15

DN15

DN15

DN15

NBS-GH12KW

12KW

DN15

DN15

DN15

DN15

NBS-GH18KW

18KW

DN15

DN15

DN15

DN15

NBS-GH24KW

24KW

DN15

DN15

DN15

DN15

NBS-CH24KW

24KW

DN15

DN20

DN20

DN20

NBS-CH36KW

36KW

DN15

DN20

DN20

DN20

NBS-CH48KW

48KW

DN15

DN20

DN20

DN20

NBS-BH54KW

54KW

DN15

DN20

DN20

DN20

NBS-BH60KW

60KW

DN15

DN20

DN20

DN20
