Vertical Electric-Heating Steam Generator 18KW 24KW 36KW 48KW

Short Description:

NOBETH-CH steam generator is one of the Nobeth fully automatic electric heating steam generator series, which is a mechanical device that uses electric heating to heat water into steam.It mainly consists of a water supply, an automatic control, ,a safety protection&heating system and a furnace.

Brand: Nobeth

Manufacturing Level: B

Power Source: Electric

Material: Mild Steel

Power: 18-48KW

Rated Steam Production: 25-65kg/h

Rated Working Pressure: 0.7MPa

Saturated Steam Temperature: 339.8℉

Automation Grade: Automatic


Product Detail

Product Tags

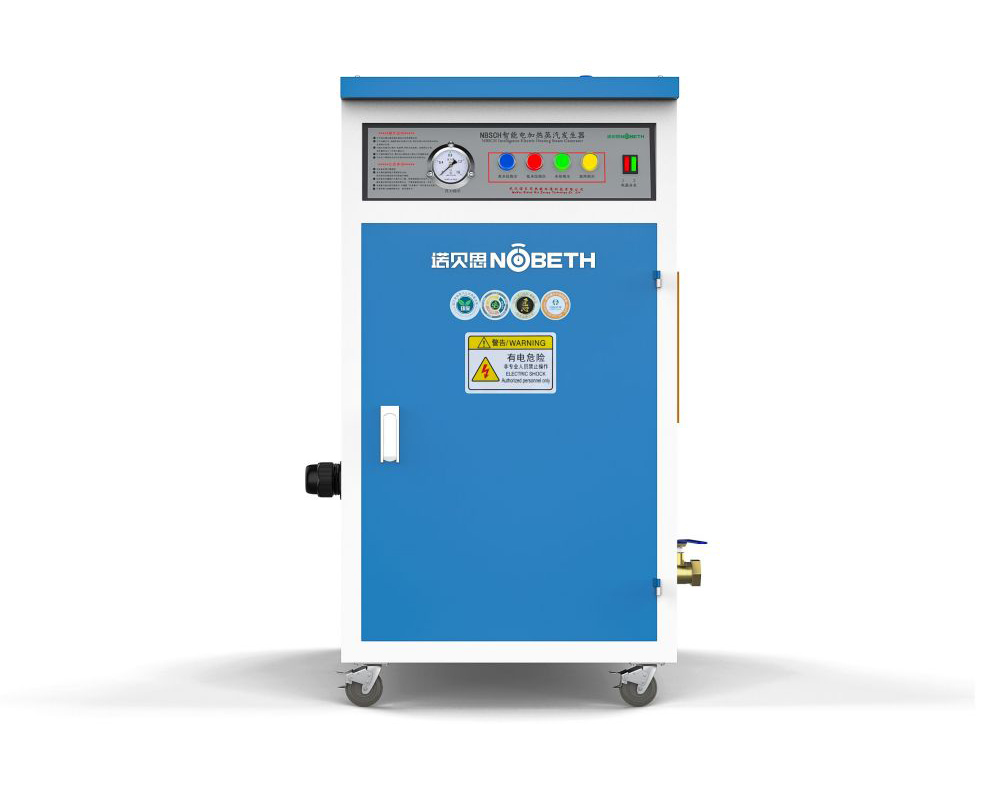

Exterior

The appearance of the NOBETH-CH series steam generator is blue and white,using thickened and high-quality steel plates. It adopts a special spray paint process, which is beautiful and durable. It is small in size, can save space, and is equipped with universal wheels with brakes, which is convenient to move.

Details and Applications

All parts of Nobeth steam generator products are preferred to choose the world's top quality products. The shell is made of high-quality steel plate, and the internal gallbladder adopts high-quality welding and flaw detection technology. It has been inspected many times before leaving the factory, checks layer by layer, and guarantees heavily to ensure the quality and quantity for your production.

This series of steam generators can be widely used in biochemicals, food processing, clothing ironing, canteen heat preservation &steaming, packaging machinery, high-temperature cleaning, building materials, cables, concrete steaming&curing, planting, heating&sterilization,and experimental research, etc. It is the first choice of a new type of fully automatic, high efficiency, energy saving and environmentally friendly steam generator that replaces traditional boilers.

Advantages

1. Elegant appearance - suitable for deep and narrow small places.

2. It adopts two sets of high-quality seamless stainless steel heating pipes, which can adjust the power according to needs.

3. Large space in inner furnace, pure saturated steam without moisture - stable good performance.

4. Copper mechanical ball float valve used - automatic detects and controls the water level of inner furnace effectively prevent dry heating - ensures safety and prolong's service life time of heating tubes and inner furnace.

5. Regardless of water quality, pure water can be used, long service life time with easy maintenance.

6. Double safety guarantee - adjustable pressure controller and mechanical safety valve.

7. Universal wheels with a brake - move freely.

8. Can be customized - inner furnace with 304 stainless steel or sanitation stainless steel material according to requirement.

Specifications

Model

Power

Dia of Water Inlet

Dia of Sewage Outfall

Dia of Steam Outlet

Dia of  Safety Valve

NBS-FH3kw

3KW

DN15

DN15

DN15

DN15

NBS-FH6kw

6KW

DN15

DN15

DN15

DN15

NBS-FH9kw

9KW

DN15

DN15

DN15

DN15

NBS-GH3KW

3KW

DN15

DN15

DN15

DN15

NBS-GH6KW

6KW

DN15

DN15

DN15

DN15

NBS-GH9KW

9KW

DN15

DN15

DN15

DN15

NBS-GH12KW

12KW

DN15

DN15

DN15

DN15

NBS-GH18KW

18KW

DN15

DN15

DN15

DN15

NBS-GH24KW

24KW

DN15

DN15

DN15

DN15

NBS-CH24KW

24KW

DN15

DN20

DN20

DN20

NBS-CH36KW

36KW

DN15

DN20

DN20

DN20

NBS-CH48KW

48KW

DN15

DN20

DN20

DN20

NBS-BH54KW

54KW

DN15

DN20

DN20

DN20

NBS-BH60KW

60KW

DN15

DN20

DN20

DN20

Nobeth Model

Rated capacityKG/H)

Rated working pressureMpa)

Saturated steam temperature)

External dimension (MM)

NBS-FH3kw

3.8

0.7

171

700*500*950

NBS-FH6kw

8

0.7

171

700*500*950

NBS-FH9kw

12

0.7

171

700*500*950

NBS-GH3KW

3.8

0.7

171

572*435*1250

NBS-GH6KW

8

0.7

171

572*435*1250

NBS-GH9KW

12

0.7

171

572*435*1250

NBS-GH12KW

16

0.7

171

572*435*1250

NBS-GH18KW

25

0.7

171

572*435*1250

NBS-GH24KW

32

0.7

171

572*435*1250

NBS-CH24KW

32

0.7

171

930*520*1100

NBS-CH36KW

50

0.7

171

930*520*1100

NBS-CH48KW

65

0.7

171

930*520*1100

NBS-BH54KW

72

0.7

171

930*560*1175

NBS-BH60KW

83

0.7

171

930*560*1175
